High Speed Shaking Incubator

1. Stack up to three units high, Space-saving and high-capacity.

2. Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their

position on the platform.

3. Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

4. Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

5. Insulating and tempered glass door which is non-screw design provides good view of incubating state

without opening lids.

6. Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy to

clean and protect bacteria breeding.

7. High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8. The EMC (Electromagnetic Interference) design to make machine more accurate and stable.

9. The running will stop when the door is open. It is more safe.

10. With ultraviolet sterilization function.

heated shaking incubator

1. Seamless welding inner chamber, its bottom can be washed thoroughly.

2. LCD Touch Screen that making parameters setting and viewing easily. Such as:

a. The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

b. Keyboard blocking prohibits miss operation.

c. Setting rotation direction is positive or reverse.

d. Setting circulation fan opens normally or automatically.

e. Data memory function can check the history record within 3 months.

f. The data easily transfer through the USB interface.

g. Servo-motor makes speed control precisely and ensures high-speed performance and stability.

h. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable,

ensures machine working long time in low temperature without ice block.

3. Special designed vent satisfy the oxygen need of sample.

4. Cylindrical clamps special for high speed.

5. Humidity control function (option).

shaking incubator

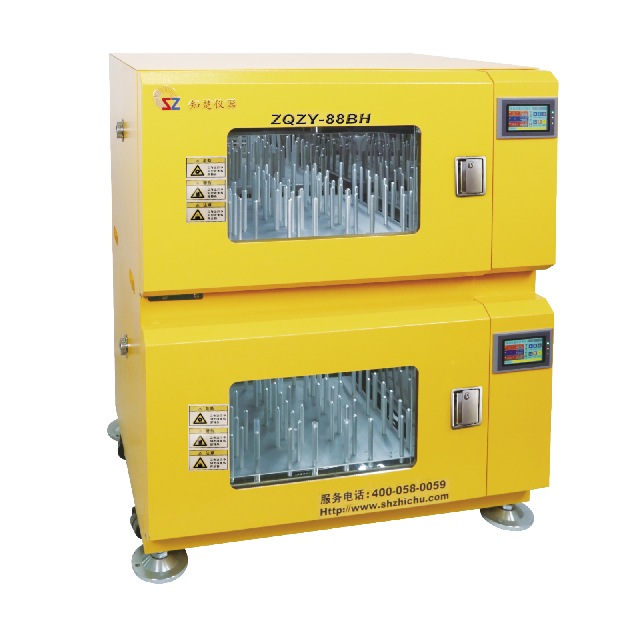

Product Name	1-Unit Incubator Shaker	Double-decker Incubator Shaker	Double-decker and Stacked Incubator Shaker
Model	ZQZY-88AH	ZQZY-88BH	ZQZY-88CH
Shaking Range	10-800rpm（10-1200rpm）
Shaking Control	±1rpm
Orbit (diameter)	φ3mm （φ1.5mm）
Temp. Range	4℃～60℃(at 23℃～25 ℃)
Temp. Accuracy	±0.1℃
Temp. Uniformity	±0.6℃(at 37 ℃)
Display	LCD ( touch screen)
Air circulation	Forced air circulation
Parameter Control	P.I.D Microprocessor
Timer Range	0-999.9 hrs.
Platform Size (D×W )	single 575mm×435mm
Standard Platform	cylindrical clamps special for high speed
Power Source	AC220±10% 50~60Hz
Outside Dimensions (D×W×H)	920mm×700mm×600mm	920mm×700mm×1170mm	920mm×700mm×1735mm
Weight	104kg	245kg	352kg
Noise Level	<55dB
