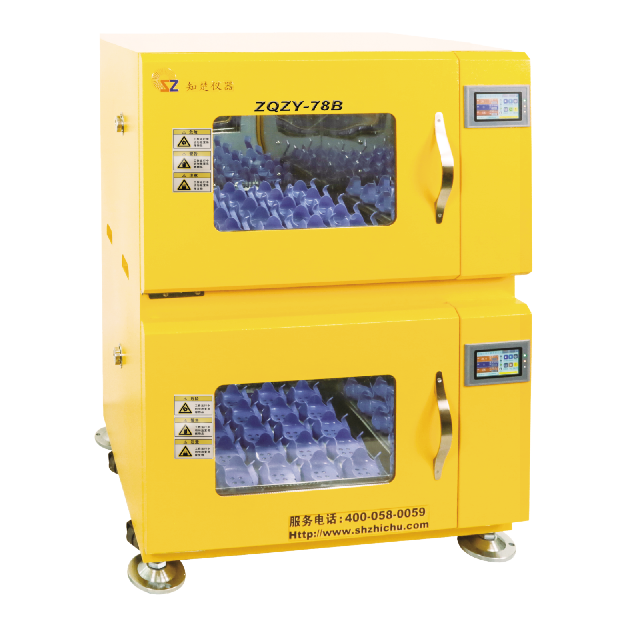

Small Temperature Control Shaking Incubator (Stackable )

This temperature control shaking incubator can be stacked up to three units high, sapce saving and high-capacity. Seamless welding inner chamber, its bottom can be washed thoroughly. LCD Touch Screen that making parameters setting and viewing easily.  This model is so popular !
Availability:
Quantity:
  • ZQZY-78A/B/C
  • Zhichu

1. Bottom and middle units are integrated double-decker structure which can stack up to three units high, space-saving and high-capacity.

2. Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position

    on the platform.

3. Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

4. Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

5. Insulating and tempered glass door which is non-screw design provides good view of incubating state without opening lids.

6. Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy to clean and protect

   bacteria breeding.

7. High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8. The EMC (Electromagnetic Interference) design to make machine more accurate and stable.

9. The running will stop when the door is open. It is more safe.

10. With ultraviolet sterilization function.

Zhichu shaking incubator

1. Seamless welding inner chamber, its bottom can be washed thoroughly.

2. LCD Touch Screen that making parameters setting and viewing easily. Such as:

   a. The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

   b. Keyboard blocking prohibits miss operation.

   c. Setting rotation direction is positive or reverse.

   d. Setting circulation fan opens normally or automatically.

   e. Data memory function can check the history record within 3 months.

   f. The data easily transfer through the USB interface.

3. Servo-motor makes speed control precisely and ensures high-speed performance and stability.

4. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable,

    ensures machine working long time in low temperature without ice block.

5. Special designed vent satisfy the oxygen need of sample.

6. The plastic molding clamps make it easily to put and take flasks with one hand.

orbital shaker price

Product Name

1-Unit Incubator Shaker

Double-decker

Incubator Shaker

Double-decker and

Stacked

Incubator Shaker

Model

ZQZY-78A

ZQZY-78B

ZQZY-78C

Shaking Range

10-300rpm

10-350rpm

10-350rpm

(the top unit 10-300rpm)

Shaking Control

±1rpm

Orbit (diameter)

φ26mm

Temp. Range

460(at  2325 )

Temp. Accuracy

±0.1

Temp. Uniformity

±0.6(at 37 )

Display

LCD(touch screen)

Air circulation

Forced air circulation

Parameter Control

P.I.D Microprocessor

Max. Capacity

(Stainless steel clamps)

single 250ml×25 or 500ml×16 or 1000ml×9 or 2000ml ×5 or 3000ml ×5

Max. Capacity

(Plastic cement clamps)

single 250ml×25 or 500ml×16 or 1000ml×9 or 2000ml ×5 or 3000ml ×4

Timer Range

0-999.9 hrs.

Platform Size

(D×W)

single 475mm×465mm

Standard Platform

Universal Platform (Dedicated Platform optional)

Power Source

AC220±10%                     50 ~ 60Hz

Outside Dimensions

(D×W×H)

820mm×700mm×600mm

820mm×700mm×1170mm

820mm×700mm×1735mm

Weight

115kg

250kg

365kg

Noise  Level

<55dB

Internal Effective Height

362mm
