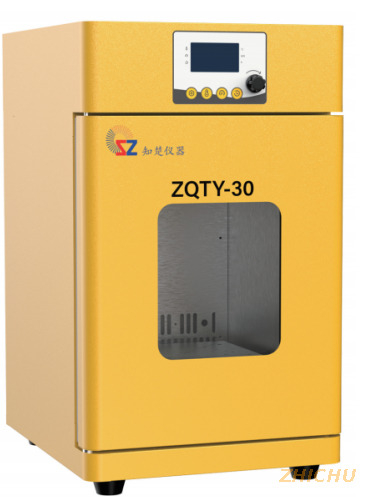

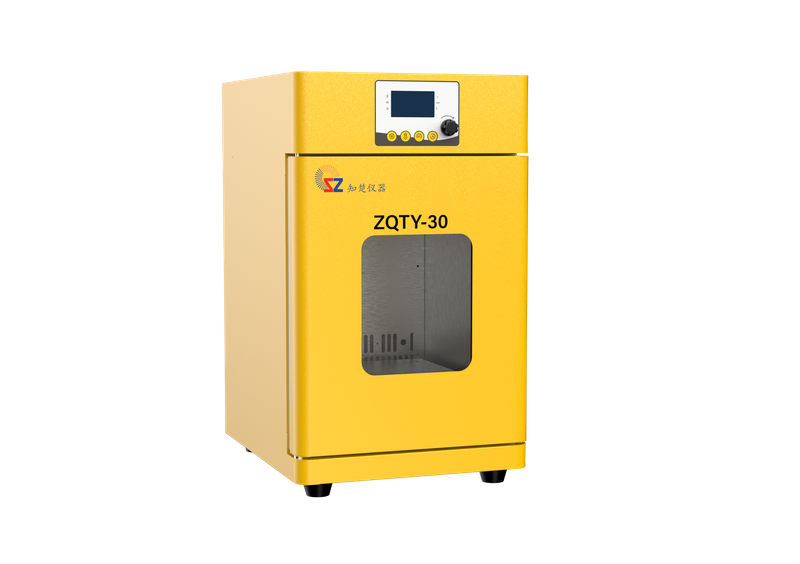

New product! Small Capacity Cooling Benchtop Shaker Incubator

Small capacitiy benchtop shaker incubator
Availability:
Quantity:
  • ZQTY-30

  • ZHICHU

Side-Opening Door Design

Facilitates convenient access during operations on the workbench, improving usability in lab environments.


Triple-Wheel Drive System

Ensures smooth, stable, and durable operation with long-term reliability.


Silent Fan with Forced Convection

Provides uniform temperature distribution and excellent constant temperature performance while minimizing noise.


Hollow Tempered Glass Door

Allows for clear observation of the internal chamber from any angle without the need to open the door, maintaining temperature

stability.


Streamlined, Aesthetic Exterior

The inner chamber is made from rounded corner (R-angle) brushed stainless steel,which is easy to clean, corrosion-resistant, and inhibits bacterial growth. The external chamber is finished with electrostatic spray enhanced durability.


Peltier Temperature Control Technology

Environmentally friendly and energy efficient, providing precise and stable temperature regulation without refrigerants.


Microcomputer PID Control

Enables precise management of temperature and shaking frequency, with an integrated timing function for greater experimental

flexibility.


DC Brushless Motor

Offers precise speed control, excellent high speed performance, and enhanced operational stability.


One-Piece Molded Plastic Flask Clamp

Designed for ergonomic one-handed use, allowing for easy and secure placement of sample flasks.


Basic feature for ZQTY-30 Small Capacity Cooling Shaker Incubator


Product Name Benchtop Shaker Incubator
Model ZQTY-30
Shaking Speed 10-300rpm
Shaking Accuracy ±1rpm
Orbit Diameter φ26mm
Temperature Control Range RT-10~55℃(at RT 23℃-25℃)
Temperature Accuracy ±0.1℃
Temperature Uniformity ±1℃(at 37℃)
Inside Chamber R angle(arc angle)
Display Mode LCD
Convection Mode Air-forced convection
Control Mode P.I.D
Maximum capacity
(S.S  clamp)
250ml x5 or 500ml x4 or 1000mlx2
Maximum capacity
(plastic  clamp)
250ml x5 or 500mlx4 or 1000mlx2
Control Mode 0-99h59min
Shaking platform
(L*W)
240mm*240mm
Maxium load 5.0 kg
Power Supply AC220±10%、50~60Hz
Overall Dimensions
(L*W*D)
475mm×350mm×590mm
