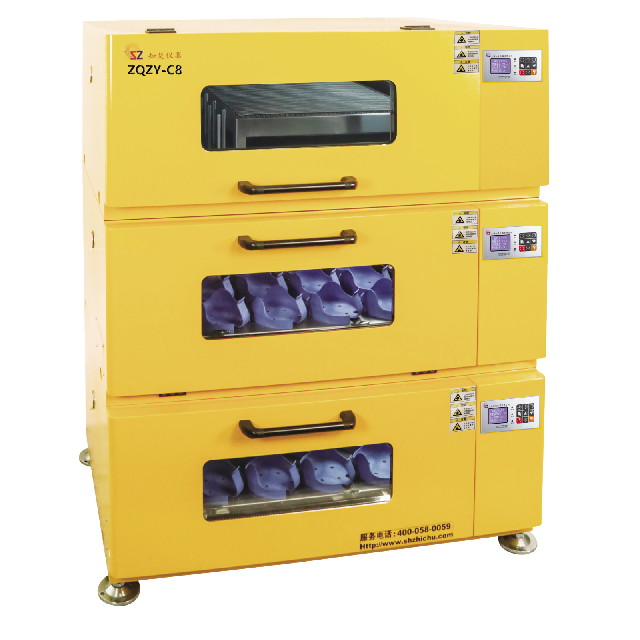

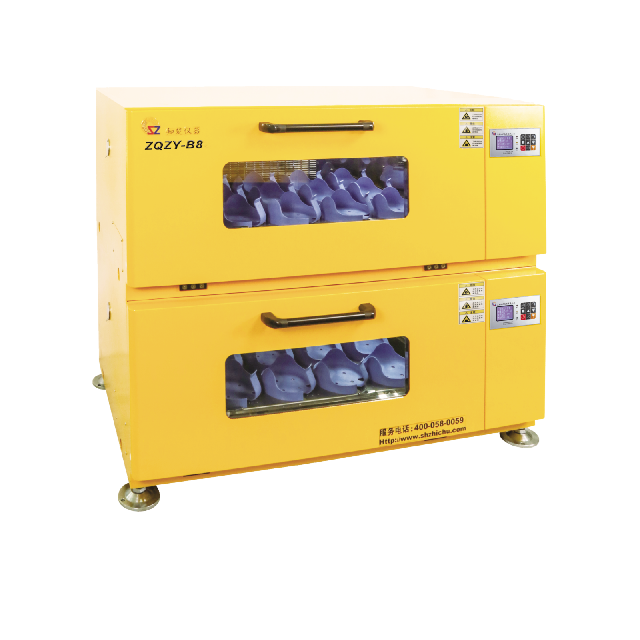

ZQZY-A8/ZQZY-B8/ZQZY-C8 - Stacked Shaking Incubator with Cooling (Button screen)

This shaking incubator has a temperature control system and each unit operates independently. High quality and low noise imported CFC free compressor ensure refrigeration effect and stable. The EMC (Electromagnetic Interference) design makes machine more accurate and stable.

Availability:
Quantity:
  • ZQZY-A8/B8/C8

  • Zhichu

1.  Stack up to three units high, Space-saving and high-capacity.

2.  Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks

     regardless of their position on the platform.

3.  Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

4.  Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

5.  Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy

     to clean and protect bacteria breeding.

6.  Glides up door which is non-screw design and slide-out platform provide easy access to all samples.

     Each machine operates independently.

7.  High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8.  The EMC (Electromagnetic Interference) design makes machine  more accurate and stable.

9.  The running will stop when the door is open. It is more safe.

10. With ultraviolet sterilization function.


1.  Servo-motor makes speed control precisely and ensures high-speed performance and stability.

2.  Insulating and tempered door glass as well as the stainless steel frames with heating function avoid

     condensation effectively, also provides good view of incubating state without opening lids.

3. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes

    adjustable, ensures machine working long time in low temperature without ice block.

4. The plastic molding clamps make it easily to put and take flasks with one hand.

5. Special lighting system(Optional). Incubator shakers with a powerful lighting system

    guarantee excellent homogenous parameters for testing and growth conditions. Stepless adjustable

    LED Lighting System which is long service life,  energy saving and highly efficient.

    Maximum lighting intensity can be reached 30000LX.


Product Name

1-Unit Stacked

Incubator Shaker

2-Units Stacked

Incubator Shaker

3-Units Stacked

Incubator Shaker

Model

ZQZY-A8

ZQZY-B8

ZQZY-C8

Shaking Range

10-300rpm

Shaking Control

±1rpm

Orbit (diameter)

φ26mm(φ50mm)

Temp. Range

4~ 60(at  2325 )

Temp. Accuracy

±0.1

Temp. Uniformity

±1(at 37  )

Display

LCD (Touch Screen)

Air circulation

Forced air circulation

Parameter Control

P.I.D Microprocessor

Max. Capacity

(Stainless steel clamps)

single 250ml×66 or 500ml×45 or 1000ml×28 or 2000ml×15

Max. Capacity

(Plastic cement clamps)

single 250ml×60 or 500ml×40 or 1000ml×23 or 2000ml×15

Timer Range

0-999.9 hrs.

Platform Size

(D×W)

single 928mm×530mm

Standard Platform

Universal Platform (Dedicated Platform optional)

Power Source

AC220±10%                     50 ~ 60Hz

Outside Dimensions

(D×W×H)

1360mm×845mm×630mm

1360mm×845mm×1185mm

1360mm×845mm×1740mm

Weight

248kg

438kg

626kg

Noise  Level

<55dB
