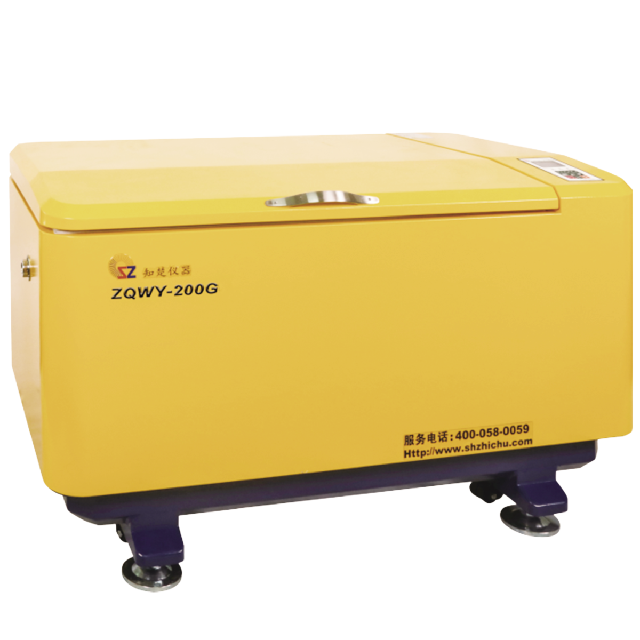

ZQWY-200G Shaking Incubator with Lighting System

1. Large backlighting LCD display that making parameters setting and viewing easily.

Keyboard blocking prohibits miss operation.

2. Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks

regardless of their position on the platform.

3. Forced air circulation via low noise fan ensures a homogenous air mixture.

4. Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

5. Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

6. Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners

easy to clean and protect bacteria breeding.

7. High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8. The EMC (Electromagnetic Interference) design makes machine more accurate and stable.

9. Open-Door Cutout Switch stops agitation when chamber is open providing a more favorable work environment.

10. With ultraviolet sterilization function.

1. Incubator shakers with a powerful lighting system guarantee excellent homogenous parameters

for testing and growth conditions.

2. Stepless adjustable LED Lighting System which is long service life, energy saving and highly efficient.

Maximum lighting intensity can be reached 16000LX.

3. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is

30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.

4. Servo-motor makes speed control precisely and ensures high-speed performance and stability.

5. With adjustable support foot and roller for easy movement.

6. Special designed vent satisfy the oxygen need of sample.

7. The plastic molding clamps make it easily to put and take flasks with one hand.

8. Product can be updated to LCD Touch Screen that making parameters setting and viewing easily. Such as:

a. The setting temperature, speed, time and the real temperature,speed, remaining time are

shown simultaneously.

b. Setting rotation direction is positive or reverse.

c. Setting circulation fan opens normally or automatically.

d. The data easily transfer through the USB interface.

Product Name	Console Incubated and Refrigerated Shaker with Lighting System
Model	ZQWY-200G
Lighting intensity	0~16000LX Stepless adjustable (standard)
Shaking Range	10-300rpm
Shaking Control	±1rpm
Orbit (Diameter)	φ26mm（φ50mm）
Temp. Range	4~60℃（at 23℃~25℃）
Temp. Accuracy	±0.1℃
Temp. Uniformity	±1℃(at 37 ℃)
Display	LCD
Air circulation	Forced air circulation
Parameter Control	P.I.D Microprocessor
Max. Capacity (Stainless steel clamps)	250ml×60 or 500ml×40 or 1000ml×24 or 2000ml×15
Max. Capacity (Plastic cement clamps)	250ml×60 or 500ml×40 or 1000ml×23 or 2000ml×15
Timer Range	0-999.9 hrs.
Platform Size （L×W）	905mm×530mm
Power Source	AC220±10% 50~60Hz
Overall Dimensions （L×W×H）	1340mm×780mm×840mm
Weight	248kg
Noise Level	<55dB
