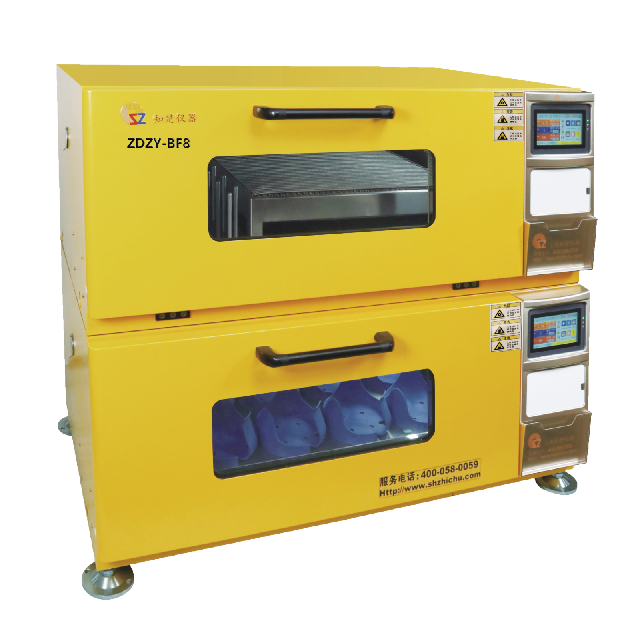

ZDZY-AF8 / ZDZY-BF8 - Stackable temperature control incubator shaker(For 5L flasks)

This stackable shaking incubator is special for 5L flasks culture. The temperature uniformity is ±0.8℃。
Availability:
  • ZDZY-AF8 / BF8 (For 5L flasks)

  • Zhichu

1. Triple-eccentric drive is stable and durable.

2. Audible and visible alarms alert the user and automatic power-off under abnormal conditions.

3. Automatic restart after power interrupt with non-volatile Memory keeps running smoothly.

4. Insulating and tempered glass door which is non-screw design provides good view of incubating state without opening.

5. Stainless inner chamber with arc angle is easy to clean and protects bacteria breeding.

6. High quality and low noise imported CFC free compressors ensure refrigeration effect.

7. The EMC (Electromagnetic Interference) makes machine more accurate and stable.

8. The running will stop when the door is open. It is more safe.

9. With ultraviolet sterilization function.


1. Servo-motor can control precisely speed.

2. Insulating and tempered door glass as well as the stainless steel frames with heating function avoid condensation effectively, also provides good view of incubating state without opening lids.

3. Special refrigerating process with adjustable cooling capacity makes temperature control more accuracy.

4. Timing frost-removing function ensures to work for long time in low temperature without freezeing. The timing range is 1~89min and the defrost interval is adjustable from 30 to 600min.

5. LCD Touch Screen that making parameters setting and viewing easily. Such as:

a. The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

b. Keyboard  blocking  prohibits  miss operation.

c. Setting rotation direction is positive or reverse.

d. Setting circulation fan opens normally or automatically.

e. Data memory function can check the history record within 3 months.

f. Such data curves as temperature, speed can be displayed.

g. The data easily transfer through the USB interface.

6. The right side of the door is a whole molding design, the top 7 inchtouch screen, the central board design,  under the transparent box which registration card can be placed.

7. The plastic molding clamps make it easily to put and take flasks with one hand.

8. Special lighting system(option) : the light intensity can be as high as 16000LX, high efficiency and

energy saving, high light efficiency, 1%-100% step 1% adjustable (1%, 2% , 3%—100%) ; long service life

(multiple light sources can be upgraded).

Product  Name

Temperature Control Shaking Incubator (Stackable)

Model

ZDZY-AF8(1 unit)

ZDZY-BF8(2 units)

Shaking Range

10-300rpm

Shaking Control

±1rpm

Orbit (diameter)

φ26mm(φ50mm is optional)

Temp. Range

4℃~ 60℃(at  23℃~25 ℃)

Temp. Accuracy

±0.1℃

Temp. Uniformity

±0.8℃(at 37  ℃)

Display

LCD (Touch Screen)

Air circulation

Forced air circulation

Parameter Control

P.I.D Microprocessor

Max. Capacity

(Stainless steel clamps)

(Single shaking platform) 250ml×66 OR 500ml×45 OR 1000ml×28 OR 2000ml×15 OR 5000ml×8

Max. Capacity

(Plastic molding clamps)

(Single shaking platform) 250ml×60 OR 500ml×40 OR 1000ml×23 OR 2000ml×15

Timer Range

0-999.9 hrs.

Platform Size(D×W)

(Single shaking platform)  928mm×530mm

Power Source

AC220±10% (110V is optional)        50 ~ 60Hz

Overall Dimensions

(D×W×H)

1360mm×845mm×730mm

1360mm×845mm×1385mm

Weight

210kg

412kg

Noise  Level

<55dB

Internal Effective Height

465mm
