Choose a laboratory incubator shaker by the number and size of vessels you need to run together, your required temperature range, and the space available for installation. Compare the representative models below, then confirm the holders and operating conditions for your application.
| Your purchasing priority | Product type and representative model | Published vessel capacity | Temperature range | Overall dimensions, L × W × H |
| Benchtop flask culture requiring heating above room temperature | Heating-only benchtop incubator shaker — ZHTY-70 | 30 × 250 mL, 20 × 500 mL, or 12 × 1 L flasks | Ambient +5°C to 60°C | 860 × 670 × 550 mm |
| Benchtop flask culture requiring refrigeration | Refrigerated benchtop model — ZQTY-70 | 30 × 250 mL, 20 × 500 mL, or 12 × 1 L flasks | 4–60°C* | 860 × 670 × 550 mm |
| Additional flask capacity through vertical stacking | stackable incubator shaker — ZQZY-98A / 98B / 98C | Per chamber: 30 × 250 mL, 20 × 500 mL, or 4 × 5 L flasks; one, two or three chambers | 4–60°C* | 920 × 700 mm base; height 705 / 1,340 / 1,975 mm |
| Two shaking platforms in a floor-standing unit | Floor-standing model — ZQLY-300 | Per platform: 40 × 250 mL, 28 × 500 mL, or 8 × 2 L flasks; two platforms | 4–60°C* | 960 × 780 × 1,430 mm |
| A broad platform accommodating larger flasks | Horizontal model — ZQWY-200 | 60 × 250 mL, 40 × 500 mL, or 8 × 5 L flasks | 4–60°C* | 1,340 × 780 × 840 mm |
| High-speed shaking of microplates | Single-drive high-speed model — ZQZY-88AH | Holder configuration lists 16 × 96-well plates, with up to two plate levels; 3 mm orbit and 10–800 rpm no-load speed | 4–60°C* | 920 × 700 × 635 mm, single chamber |
| Refrigerated water-bath incubation | water bath incubator shaker — ZQSY-50 | 12 × 250 mL, 8 × 500 mL, or 4 × 1 L flasks | 4–99.9°C | 880 × 600 × 550 mm |
| Cultivation requiring adjustable illumination | Horizontal photosynthesis model — ZQWY-200G | 60 × 250 mL, 40 × 500 mL, or 15 × 2 L flasks; standard illumination adjustable from 0–16,000 lx | 4–60°C* | 1,340 × 780 × 840 mm |
| Shaking culture requiring controlled CO₂ | co2 incubator shaker — ZCZY-ASR8, arc-corner model | 66 × 250 mL flasks per chamber; CO₂ control range 0–20% | 4–60°C* | 1,360 × 845 × 630 mm, single chamber |

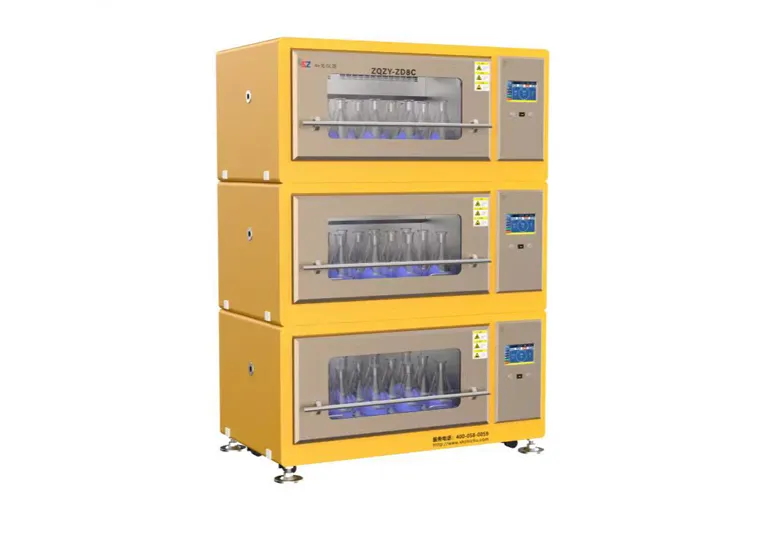

| Automated door operation and a configurable chamber count | Automated model — ZQZY-ZD8A / ZD8B / ZD8C | Per chamber with stainless-steel clamps: 54 × 250 mL, 36 × 500 mL, or 15 × 2 L flasks; one, two or three chambers | 4–60°C* | Request a confirmed installation drawing |
Compare vessel capacity on the same basis. Flask capacities above use the published stainless-steel clamp configuration where specified. Each capacity is an alternative arrangement, not a combined load. Nominal flask volume does not indicate liquid working volume. For two-platform models, confirm vessel height and clearance before finalizing the configuration.
Check the temperature conditions. The marked 4–60°C ranges are specified at an ambient temperature of 23–25°C. Published temperature uniformity at 37°C is ±1°C for the listed benchtop, floor-standing, horizontal and horizontal photosynthesis models; ±0.6°C for ZQZY-98 and ZQZY-88AH; ±0.5°C for ZCZY-ASR8 and ZQZY-ZD8; and ±0.2°C for ZQSY-50. Request test conditions relevant to your intended load and setpoint.
Match the equipment to your vessel format. For small tubes, the ZJY-100 thermostatic dry bath shaker has a standard 35-position block for 2.0 mL tubes. For two microplates or culture plates, the ZHH-100 desktop high-speed shaker lists 200–1,600 rpm no-load shaking and a temperature range of ambient +5°C to 80°C.
Request a model and configuration recommendation
Send your vessel type, dimensions, quantity per run, working volume, temperature setpoint, required orbit and speed, and available installation space. Include any CO₂, illumination or automation requirements. Ask for a quotation specifying the model, clamps or holders, accessories, and installation requirements. Confirm the clearance needed for access, ventilation and servicing alongside the equipment dimensions.
