  • B2 Biological Safety Cabinet with HEPA Filters 1300B2

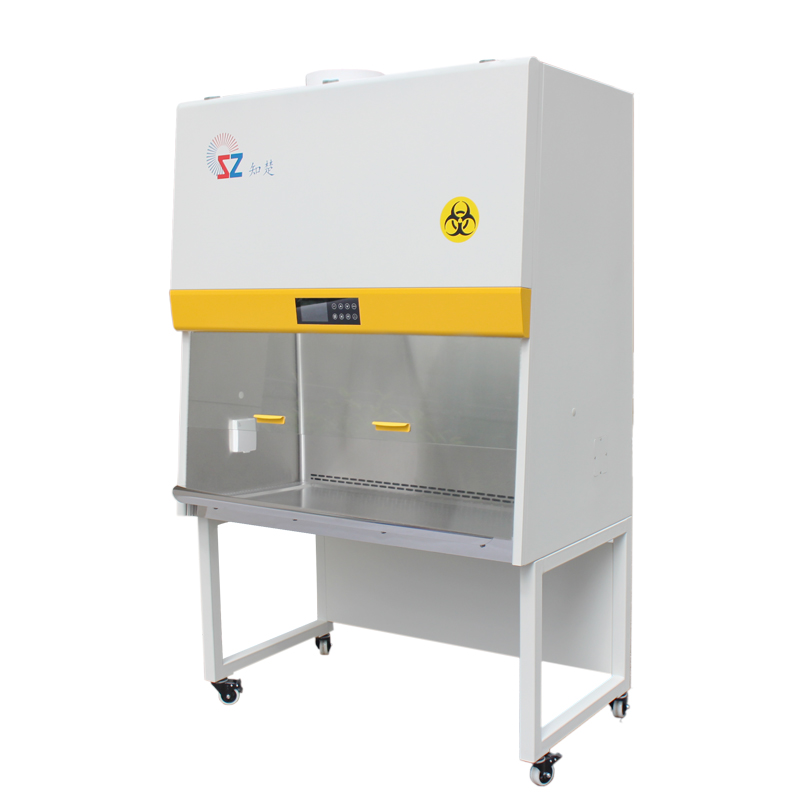

    B2 Biological Safety Cabinet with HEPA Filters 1300B2
  • B2 Biological Safety Cabinet with HEPA Filters 1300B2

B2 Biological Safety Cabinet with HEPA Filters 1300B2

B2 biological safety cabinet with hepa filters 1300b2 provides a fully enclosed and sterile workspace with high-efficiency hepa filtration. Ideal for microbiology, pharmaceutical, and laboratory research, it ensures maximum operator protection, contamination control, and reliable performance for handling hazardous biological materials.


Model: 1300B2

Brand: Zhichu

Features Technical Data

1. Design and Safety

  • Surrounding Negative Pressure Leak-Proof Design: Negative pressure chamber encases the entire potentially contaminated positive pressure area, preventing leakage due to filter breakage or seal failure, ensuring maximum containment.

  • 100% Exhaust Airflow Mode: Fully exhausts air through filters, ideal for handling volatile toxic chemicals and biohazardous materials, ensuring no recirculation into the workspace.


Why It Matters: Provides robust containment and safety, protecting operators, samples, and the environment from hazardous exposure in high-risk applications.


2. Filtration

  • Dual HEPA High-Efficiency Filters: Two long-acting, no-partition HEPA filters with >99.995% retention efficiency for particles >0.3 μm, ensuring a sterile work environment.

  • Optional ULPA Ultra-High-Efficiency Filters: Available for enhanced filtration (>99.9995% for particles >0.12 μm), offering superior protection for sensitive applications.


Why It Matters: Delivers exceptional air purification, maintaining a contamination-free workspace critical for microbiological and biohazardous research.


3. Airflow and Fan Performance

  • Stable EBM Maintenance-Free Fan System: Imported, high-performance fan ensures consistent airflow with minimal maintenance, enhancing reliability.

  • Professional Wind Speed Sensor: Enables real-time fan speed linkage for optimal airflow control, maintaining safety standards.

  • Optional Wi-Fi Remote Control and Cloud Data Upload: Allows remote monitoring of wind speed data with cloud traceability, enhancing operational oversight.


Why It Matters: Ensures stable, precise airflow with minimal upkeep, supporting safe and traceable operations in controlled environments.


4. Energy Efficiency and Maintenance

  • Energy-Saving Design: Low power consumption reduces operational costs while maintaining high performance.

  • Low Maintenance Costs: Maintenance-free fan and durable filters minimize long-term expenses.

  • Remote One-Click Shutdown: Enables convenient, safe power-off from a distance, improving usability.


Why It Matters: Reduces energy and maintenance costs, supporting sustainable and cost-effective laboratory operations.

Product Name

Class II B2 Biological Safety Cabinet

Model

1300B2

Overall External Dimensions
(Length×Width×Height)
(Support Height 720)mm

1340x850x2120

Internal Dimensions (Length×Width×Height mm)

1270x580x660

Product Executive Standard

Standard for Biosafety Cabinets:China YY0569-2011
Air cleanliness standards:ISO14644,1Class3,IEST-G-CC1001,IEST-G-CC1002 and other relevant standards
Filter performance standards:IEST-RP-CC034,1,IEST-TP-CC007.1,IEST-RP-CC001.3 and EN1822

Average Air Velocity

Inflow Airflow

Starting set value:>0.53 meters(when the air velocity is lower than 0.40 meters/second, the sound and light alarm will be triggered automatically)

Downdraft Airflow

Starting set value:>0.35 meters(when the airflow fluctuation exceeds the nominal value by 20%, the sound and light alarm willbe triggered automatically)

Gas Exchange Volume
(Wind Speed Rating)

Inflow Airflow

485 m3/hour

Downdraft Airflow (70%)

930 m3/hour

Exhaust Airflow (30%)

1400 m3/hour

Air Cleanliness Standard in the Work Area

Class 1 Cleanliness,IS014664.1 Class3,Federal Standard 209E Class1/M15,AS1386 Class1.5
JIS B9920 Class 3,BS5295 Class,KS27030.1.2083 and AFNOR×44101 ClassM10,000

Downdraft and Exhaust Filtration

The HEPA high efficiency filter has built-in metal protective mesh and metal frame,compliant with EN1822 and IEST-RP-CC0013 standards (The ULPA ultra-high efficiency filter is optional).

High Retention Efficiency of Filters

A retention efficiency of higher than 99.995%for particles greater than 0.3um (Ultra-high efficiency:a retention efficiency of higher than 99.9995%for particles greater than 0.12um).

Noise(According to EN12469)

<58db

Light Intensity(According to NSF49)

>1190LuX

Main Structure

Cold rolled sheetsSteel with a wall thickness of 1.5mm,coated with polyester resin powder

Sidewall Structure

0.8mm thickthickness 304#stainless steel sidewall,double-layer negative pressure chamber design

Power Source/Voltage

220-240V/50Hz,single-phrasephase

Rated Power/Current

371W/1.68A

Net Weight

210kg

Shipping Weight

260kg

Packing Dimensions
(Length×Width×Height mm)

1400x860x1650

Loading volume

2m³

Order No.and Parameters

SD-13720mm stand(for 1300 cabinet),SD-15720mm stand(for 1500 cabinet)
SD-18720mm stand(for 1800 cabinet),UV3030W,254nm UV lamp(for 1300 and above cabinet)
PLUG embedded anti-splash power socket,European water port,FLOW American universal gas port
