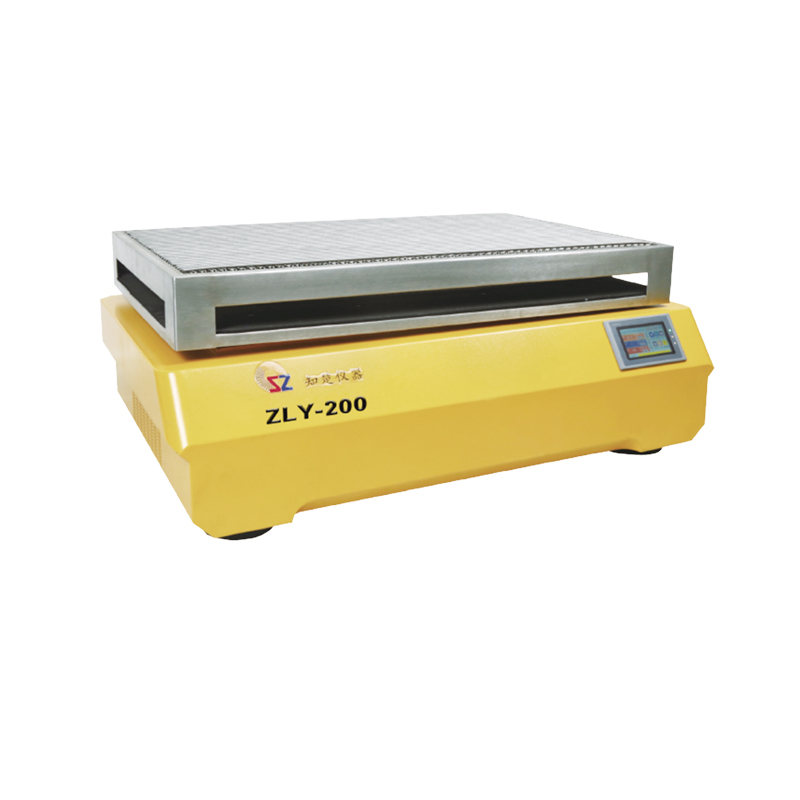

Name: Floor-standing Shaker ZLY-200
Brand: Shanghai Zhichu Instrument Co., Ltd.
Availability: InStock

Model: ZLY-200

Brand: Zhichu

Features Technical Data

1. Anti-Static, Anti-Corrosion Enclosure

Features a streamlined outer shell that is powder-coated to resist static buildup and corrosion, enhancing durability and safety.

2. Corrosion-Resistant, Easy-to-Clean Shaking Platform

Made of stainless steel, designed for resistance to oxidation and corrosion, with the ability to disassemble easily for cleaning.

3. Precise Speed Control with High Stability

Equipped with a high-quality servo motor to ensure accurate, high-performance speed regulation and stable long-term operation.

4. Integrated LCD Touch Screen Interface

Allows users to set and view parameters such as speed, time, measured speed, and remaining time all on a single, intuitive screen without switching interfaces.

5. Encrypted Lock Function

Provides a lock feature to prevent accidental or repeated operations, reducing human errors.

6. Bidirectional Rotation Capability

Supports setting the shaking platform to rotate clockwise or counterclockwise as needed.

7. Data Recording and Storage

Records operational data every minute, with the capacity to store data over the past three months for monitoring and analysis.

Product Name	Floor Standing Shaker
Model	ZLY-200
No-load shaking speed	10-300rpm
shaking speed accuracy	±1rpm
Orbit diameter	φ26mm(standard)、φ50mm(optiona)
Display mode	LCD(touch screen)
Maximum capacity (stainless steel clamp)	250ml×66 or 500ml×45 or 1000ml or 28 or 2000ml×15 or 3000ml×15 or 5000ml×11
Maximum capacity (plastic clamp)	250ml×66 or 500ml×45 or 1000ml×28 or 2000ml×15 or 3000ml×15
Timing range	0-999.9 hours
shaking platform dimensions (Length×Width)	1003mm×592mm
Standard configuration	Universal clamp(optional fixed fixture)
Power Supply	AC220±10%、50～60Hz
Overall Dimensions (Length x Width x Height)	1003mm×670mm×310mm
Net Weight	148kg
Noise leve	Below 55dB
