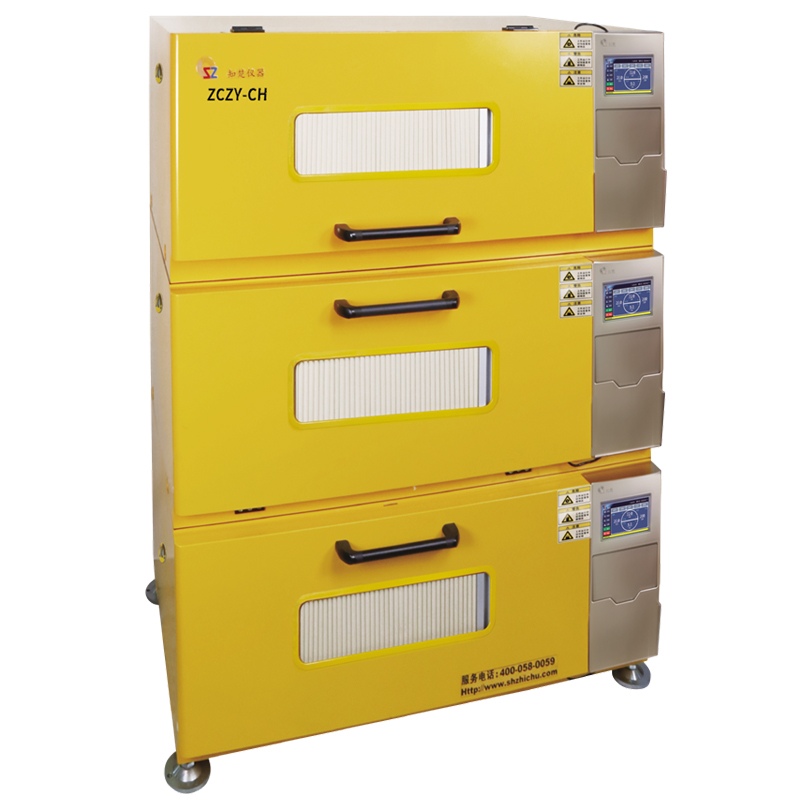

High Speed CO2 Incubator Shaker

High Speed CO2 Incubator Shaker with dual platforms, precise control, safety features, easy cleaning, and stable cooling performance.


Model: ZCZY-A B CRH/CNRH

Brand: Zhichu

Product Overview Features Technical Data

STACKABLE

  • Stack up to three units high, Space-saving and high-capacity.

  • Each machine operates independently.

DRIVE

  • Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

  • Servo-motor makes speed control precisely and ensures high-speed performance and stability. Single motor for ZCZY-A/B/CRH, dual motors for ZCZY-A/B/CNRH.

SHAKING PLATFORM

  • ZCZY-A/B/CNRH uses dual shaking platforms, each of which can be independently controlled and operated, making it very suitable for comparative experiments.The shaking speed can reach 1000rpm.

SAFETY

  • Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

  • Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

  • The running will stop when the door is open. It is more safe.

CLEAN

  • Antibacterial stainless steel interior chamber with rounded corners easy to clean and protect bacteria breeding.

  • Glides up door which is non-screw design and slide-out platform provide easy access to all samples.

  • With UV sterilization.

  • The bottom of the chamber can be washed thoroughly.

COOLING

  • High quality and low noise CFC free compressors ensure refrigeration effect and stable.

  • Special refrigerating process control technology with adjustable cooling capacity makes temperature control more accuracy.

  • Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.

VIEW

  • The stainless steel frames with heating function around door class can adjust the temperature as user's need.

  • Insulating and tempered door glass as well as the stainless steel frames with heating function avoid condensation effectively, also provides good view of culture state without opening door.

  • The co2 incubator shaker features a Touch Screen that makes parameters setting and viewing easily. Such as:

1. The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

2. Setting rotation direction is positive or reverse.

SENSOR

  • Infrared CO2 sensor measures the CO2 concentration automatically with high sensitivity.

  • For each shaker, a bottle of CO2 gas (20kg) can be used not less than 35days if the door is open normally, and about 145 days when door is not opened.

  • PT-100 temperature sensor

  • Humidity sensor(option)

DATA RECORD

  • Data memory, can record more than 600,000,00.00 datas.

  • Data curves such as real-time temperature and speed can be displayed.

  • Data easily transfer through the USB interface.

  • RS-232 or RS-485 interface is optional.

OTHER FEATURES

  • Embedded blackout curtain stretching repeatedly and not easy to damage, completely avoids light influence on culture(option).

  • With water pan for natural humidification. High temperature steam automatic humidity control system, ranging from ambient humidity to 90%(option).

  • Compliant with FDA 21CFR part 11 computerized software system(option)

  • Photosynthesis Lighting System(option)

  • Mobile and PC remote monitor(option)

Product NameHigh Speed CO2 Incubator Shaker
ModelZCZY-ARH(1 tier)ZCZY-ANRH(1 tier)
ZCZY-BRH(2 tiers)ZCZY-BNRH(2 tiers)
ZCZY-CRH(3 tiers)ZCZY-CNRH(3 tiers)
Drive System1 SET2 SETS
Shaking Platform                                       (Each can be controlled independently)1 PCS2 PCS
Shaking Speed Range10-800rpm(Φ3mm),10-1200rpm(Φ1.5mm)10-1000rpm
Shaking Control Accuracy±1rpm±1rpm
Orbit (diameter)Φ3mm (standard),Φ1.5mm(optional)Φ3mm
Temp. control Range4℃~60℃ (RT at 23℃~25℃)4℃~60℃ (RT at 23℃~25℃)
Temp. Accuracy±0.1℃±0.1℃
Temp. Uniformity±0.5℃(at 37℃)±0.5℃(at 37℃)
Interior MaterialAntibacterial SUS#304 stainless steelAntibacterial SUS#304 stainless steel
CO2 Control Range0-20%0-20%
CO2 Control Accuracy0.1%0.1%
Natural Humidityby water panby water pan
Precise humidity control (option)by high temperature steam systemby high temperature steam system
Humidity control range (option)Ambient humidity to 90% r.hAmbient humidity to 90% r.h
Humidity control accuracy (option)5% r.h5% r.h
Embedded Darkening Curtainoptionaloptional
Display7'' touch screen7'' touch screen
Air circulationforcedforced
Parameter Control MethodPID microcomputer controlPID microcomputer control
Timer Range0-999.9hrs0-999.9hrs
Noise Level<55dB<55dB
Power SourceAC220±10%, 50-60HzAC220±10%, 50-60Hz
Each Platform Size(W×D)575×435mm435×298mm*2pcs
Internal effective height365mm365mm
Each Inner Chamber Capacity193L193L
Overall Dimension(W*D*H)990*845*630mm (Single-layer)990*845*630mm (Single-layer)
990*845*1185mm  (Dual-layer)990*845*1185mm  (Dual-layer)
990*845*1740mm  (Triple-layer)990*845*1740mm  (Triple-layer)
Net Weight182kg (Single-layer)182kg (Single-layer)
328kg  (Dual-layer)328kg  (Dual-layer)
462kg (Triple-layer)462kg (Triple-layer)
Max. Capacity for each tier96 deep well plate *32pcs96 deep well plate *32pcs
