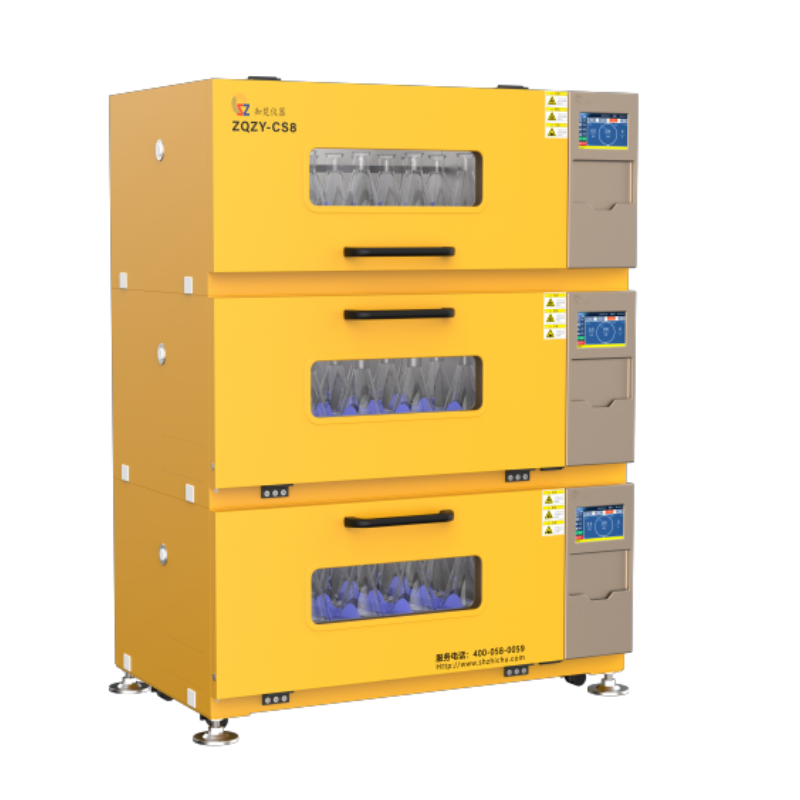

High Speed Stackable Incubator Shaker Triple-drive ZQZY-3CS8H (each shaker 306L)

1. Space-Saving & Ergonomic Design

• Modular Stackable System – Configurable in 1 to 3 layers for flexible lab space optimization.

• Dual-Door Orientation – Bottom layers feature downward-opening doors, while the top layer has an upward-opening door for ease of access.

• Screwless Stamped Door – Seamless, sleek construction for enhanced aesthetics and easy cleaning.

2. Intelligent Control & Customization

• Triple DC Brushless Motor System – Each layer features 3 independent DC brushless drivers, ensuring ultra-smooth, vibration-free operation with enhanced torque and longevity.

• Fully Independent Platform Control – Each shaking platform operates at user-defined speeds (0–1000 RPM) simultaneously, enabling parallel multi-condition experiments without cross-interference.

• Dynamic Speed Synchronization – Real-time feedback control maintains consistent orbital motion even under variable load conditions.

• 7" LCD Touch Screen – Intuitive interface for setting temperature, humidity, speed, and time, with encrypted lock and rotation customization.

• Programmable Parameters – Adjustable heating power on door glass/frame for energy efficiency and temperature uniformity.

3. Advanced Temperature & Humidity Management

• Precision Refrigeration System–CFC-free refrigerant enables quiet, stable low-temperature operation.

• Adjustable Cooling & Timed Defrost– Prevents ice buildup during prolonged low-temperature use.

• Automatic Humidity Control (Optional)– External module vaporizes RO/distilled water into steam, achieving up to 90% humidity.

4. Safety & Reliability Features

• Over-Temperature Protection – Auto power-off and alarms for critical safety.

• Door-Open Safety Stop – Immediate halt when opened to prevent accidents.

• Automatic Restart Function – Non-volatile memory ensures operation resumes post-power failure.

5. Data Tracking & Connectivity

• Long-Term Data Logging – Records 5 years of temperature, CO₂, and humidity curves via USB export.

• Industrial Communication Options (Optional) – Modbus RS232/RS485/RJ45 for seamless lab integration.

• Online App Monitoring (Optional) – Remote equipment tracking and management.

6. Sterilization & Environmental Control

• UV Germicidal Lamp – Effective sterilization to maintain aseptic conditions.

• Fabric Blackout Curtains (Optional) – Blocks external light to prevent culture interference.

7. Enhanced Stability & Performance

• Ferrite Filter Ring – Reduces electromagnetic interference for improved signal quality.

• IQ/OQ/PQ Validation (Optional) – Certified installation, operation, and performance testing for compliance.
