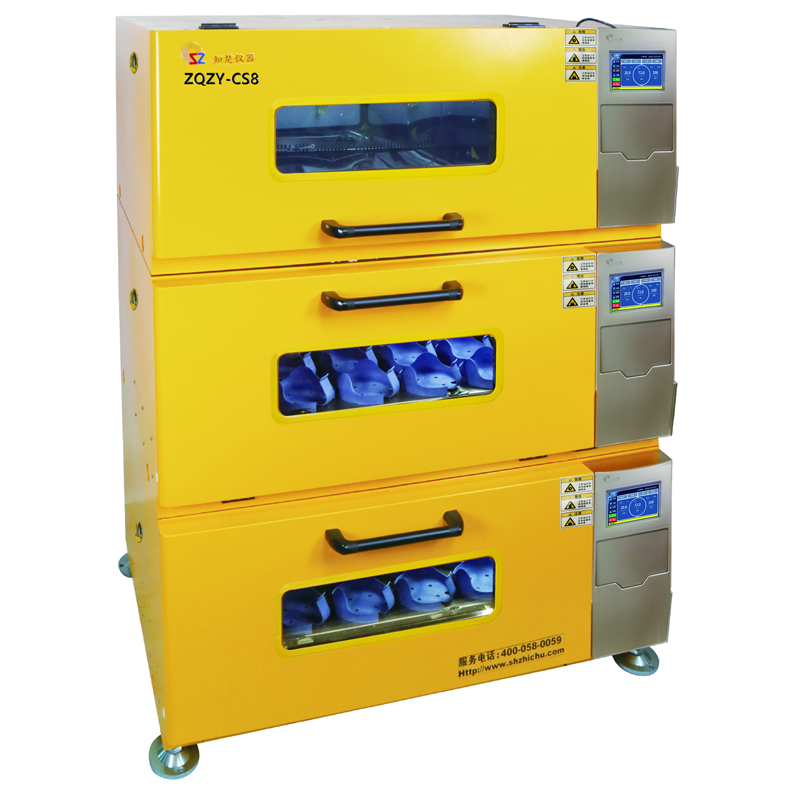

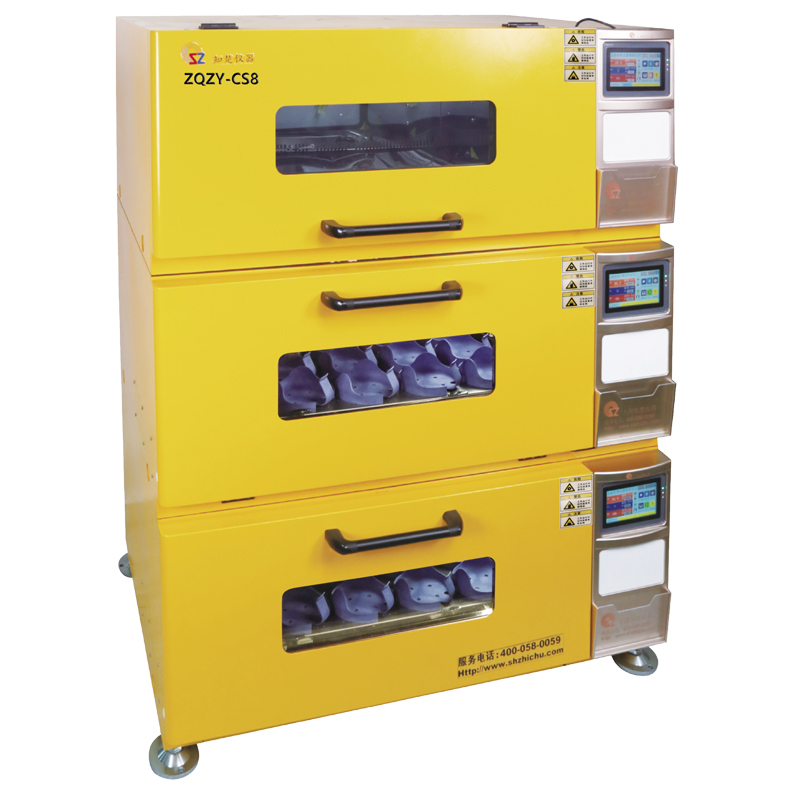

Stackable Incubator Shaker ZQZY-A B CS8 (each shaker 306L)

1. Modular Stacking System

• 1-3 Layer Configuration (vs. ZDZY's 2-layer max)

• Ergonomic Door Design:

• Bottom layers: Downward-opening

• Top layer: Upward-opening (space-saving)

• Independent Layer Control: Simultaneous multi-protocol operation at different temps/speeds

2. Precision Motion & Hygiene

• Triple Eccentric Drive: <±1% speed deviation, vibration-free

• Medical-Grade Construction:

• Seamless stainless steel chamber (mirror finish)

• Screwless 10mm tempered glass door

• Powder-coated anti-corrosion exterior

3. Advanced Climate Control

• CFC-Free Refrigeration:

• Stable operation down to 4°C

• <55 dB noise

• Programmable defrost (1-30min cycles)

• Humidity Control (Optional):

• 90% RH via RO/distilled steam injection

• ±2% RH accuracy

4. Smart Monitoring & Safety

• 7" Touchscreen Interface:

✓ Real-time CO₂/temp/humidity/speed monitoring

✓ Password protection + bidirectional rotation(Clockwise or Counter Clockwise)

• 5-Year Data Logging: USB-exportable with trend graphs

• Safety Systems:

• Over-temp cutoff + door-open auto-stop

• UV sterilization + EMI shielding(Ferrite Filter Ring)

5. Specialized Options

• Light Control:

• Blackout curtains (light-sensitive cultures)

• 30,000 LX photosynthetic lighting (1% increments)

• Connectivity:

✓ Modbus RS232/485/RJ45

✓ Remote app control (iOS/Android)

• Validation: IQ/OQ/PQ certification available
