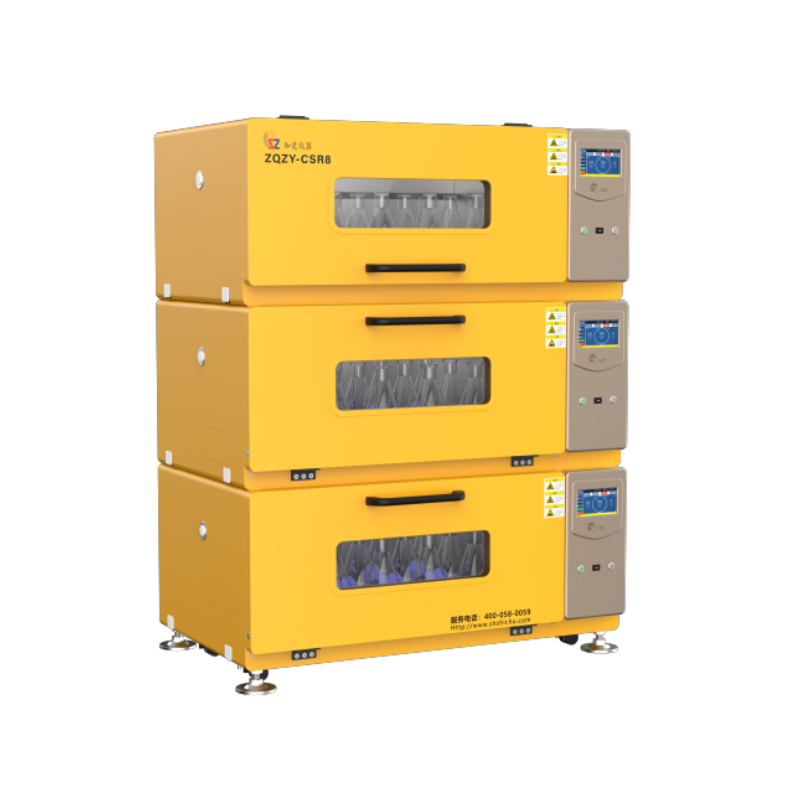

Stackable Incubator Shaker ZQZY-A B CSR8

1. Modular Stacking System

• 1-3 Layer Vertical Configuration - Space-saving design for high-density labs

• Ergonomic Door System:

• Bottom layers: Downward-opening (easy access)

• Top layer: Upward-opening (saves vertical clearance)

2. Precision Motion & Hygiene

• Triple Eccentric Drive Technology:

• 0-1500 RPM with ±0.5% speed stability

• 50% less vibration than conventional drives

• Germicidal-Grade Construction:

• Seamless  stainless steel chamber (mirror finish)

• Rounded corners + screwless design for sterilization compliance

3. Advanced Climate Control

• Eco-Friendly Refrigeration:

• CFC-free cooling (4°C to 60°C, ±0.6°C uniformity)

• Programmable defrost (1-250 seconds duration, 30-600min intervals)

• Humidity Control (CSR8 Only):

• 90% RH via RO/distilled steam (±2% accuracy)

4. Smart Monitoring & Safety

• 7" Touchscreen Interface:

✓ Real-time CO₂/temp/humidity/speed monitoring

✓ Password protection + bidirectional rotation

• 5-Year Data Logging - 1-minute interval records via USB

• Multi-Layer Protection:

• Over-temp cutoff

• UV-C timed sterilization (265nm, 99.9% germicidal rate)

5. Optional Upgrades

• Light Control:

• Blackout curtains (0% light transmission)

• 30,000 LX photosynthetic lighting (1-100% dimming)

• Connectivity:

✓ Modbus RS232/485/RJ45 (Industry 4.0)

✓ Cloud monitoring via iOS/Android app

• Validation: IQ/OQ/PQ certification available (GMP/GLP compliant)
