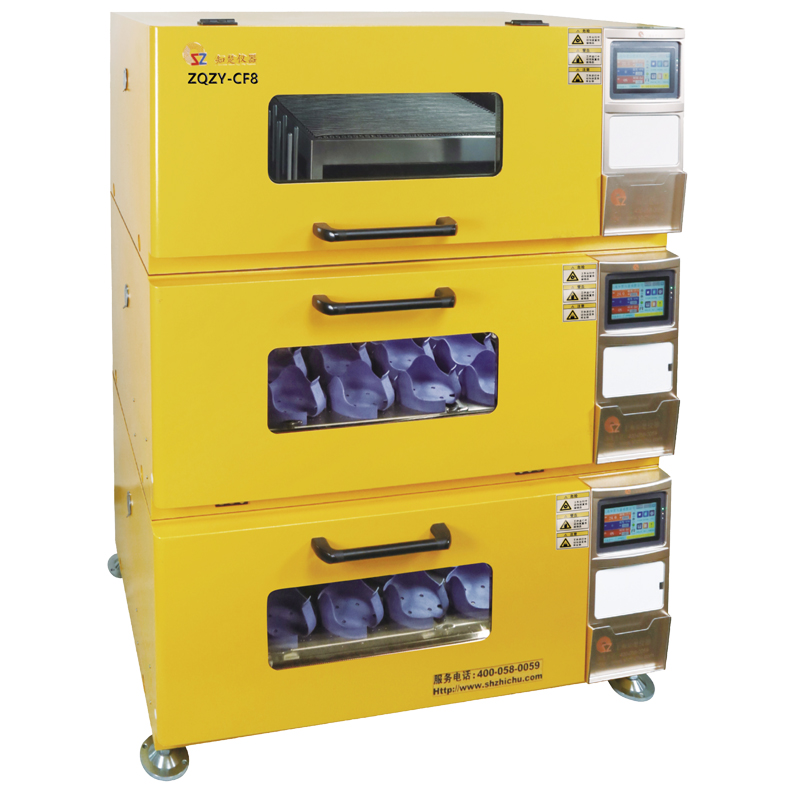

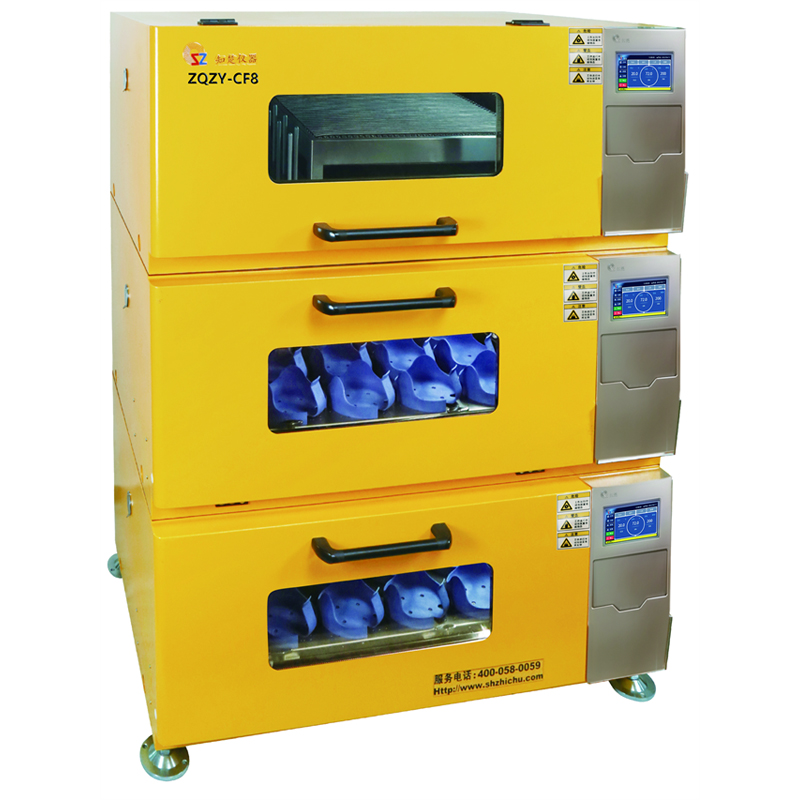

Stackable Incubator Shaker ZQZY-CF8

1. Modular Stacking System

• 1-3 Layer Vertical Configuration (vs. ZDZY's 2-layer max) - Saves 40% lab space

• Ergonomic Door Design:

• Bottom layers: Downward-opening for easy loading

• Top layer: Upward-opening (requires only 15cm clearance)

2. Precision Motion System

• Triple Eccentric Drive Technology:

• 0-1500 RPM with ±0.3% speed consistency

• 60% less vibration than belt-driven systems

• Medical-Grade Construction:

• Seamless Stainless Steel chamber (mirror finish)

• Screwless 8mm tempered glass door

3. Advanced Climate Control

• CFC-Free Refrigeration:

• Stable operation from 4°C to 60°C (±0.8°C uniformity)

• Auto-defrost system (1-250 seconds/30-600min programmable)

• <52 dB noise level

4. Smart Monitoring & Safety

• 7" Color Touchscreen:

✓ Real-time monitoring of temp/CO₂/humidity/speed

✓ Password protection + bidirectional rotation (CW/CCW)

• 5-Year Data Logging - 1-minute interval records (USB export)

• Multi-Protection System:

• Over-temperature alarm

• UV-C sterilization (99.9% kill rate at 254nm)

• EMI shielding (ferrite filter ring)

5. Optional Upgrades

• Light Control:

• Blackout curtains (100% light isolation)

• 30,000 LX LED array (50,000hr lifespan)

• Connectivity:

✓ Modbus RS232/485/RJ45 (Lab 4.0 ready)

✓ Remote monitoring via ZQZY Cloud App

• Validation: IQ/OQ/PQ certificate available
